Benchmarking Your BCI Pipeline on Public Datasets: A MOABB-Style Workflow in Nimbus Studio

Every BCI engineer has felt the quiet anxiety that follows a clean offline experiment. Your motor imagery decoder hits 92% on your lab subjects, the confusion matrix looks tight, and the pipeline runs without errors. Then a colleague tests it on their recordings and accuracy drops to 68%. The pipeline didn't change — the subjects did. This is the generalization problem, and it doesn't go away by collecting more data from the same three people.

The solution is to test against independent public datasets with known ground truth and standardized evaluation protocols. In the BCI field, the MOABB (Mother of All BCI Benchmarks) framework has become the reference point for this kind of evaluation — offering a curated library of labeled EEG datasets, standardized pipelines, and cross-dataset comparison tools. Nimbus Studio's Public Data node brings this approach directly into your visual pipeline builder, letting you run honest multi-subject benchmarks without leaving the platform — and if you're planning to carry the winning decoder all the way into production, the batch-to-live deployment bridge is covered in From Training to Streaming: Deploying a Live EEG Decoder with the Nimbus Python SDK.

This guide walks through why benchmarking on public data matters, how to wire a complete evaluation pipeline in Nimbus Studio, and how to read the results in a way that actually informs deployment decisions.

Why Private Datasets Aren't Enough

The core problem with evaluating only on your own subjects is selection bias — not intentional, but structural. Lab recordings are collected under controlled conditions, with well-rested subjects, properly prepared electrodes, and experimenters who have optimized the protocol over dozens of sessions. Real-world BCI users are none of those things.

Public datasets like BCI Competition IV Dataset 2a and PhysioNet EEG Motor Movement/Imagery Dataset were collected across many subjects and recording sessions, often at different labs, with different hardware and varying signal quality. A decoder that generalizes to these datasets is a decoder that has proven something beyond memorizing your lab's EEG artifacts.

Benchmarking on public data also makes your work reproducible and comparable. When you report "82% mean accuracy on BCI Competition IV 2a with CSP + NimbusLDA", other teams can reproduce that number, compare it to their own results, and understand exactly where your approach fits in the landscape.

The Public Data Node in Nimbus Studio

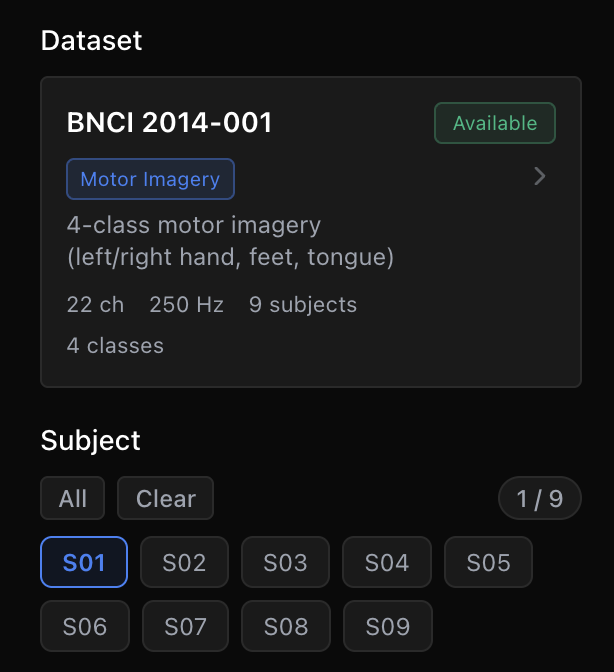

The Public Data node in Nimbus Studio handles dataset loading, subject iteration, and label alignment automatically. Point it at a supported dataset, configure the subject selection, and it emits eeg_data, eval_eeg_data, and the corresponding labels — exactly the interface that downstream preprocessing and feature nodes expect.

One of its most useful features is multi-subject batching: when you run a benchmark graph over a dataset with multiple subjects, the executor loops through each subject, runs the full subgraph, and aggregates metrics in the Results Output pane. You see both per-subject breakdowns and population-level summaries (mean ± std) without writing a single loop.

This matters practically because aggregate accuracy alone can hide important structure. A mean of 80% across 12 subjects looks very different if one subject achieves 95% while another gets 62% — that spread tells you something about the decoder's robustness that the mean obscures.

Wiring a Complete Benchmark Pipeline

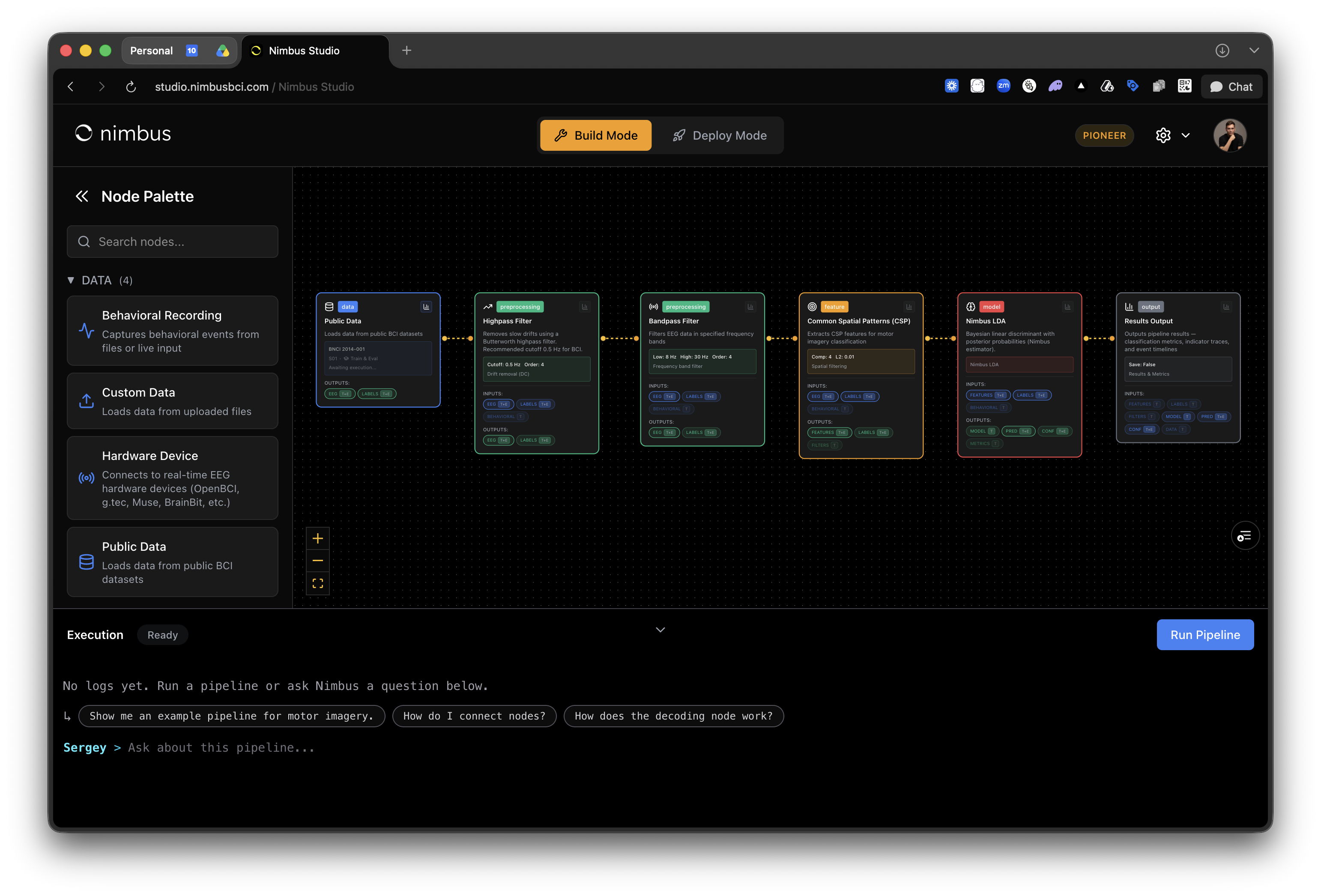

A standard motor imagery benchmark pipeline in Nimbus Studio follows this structure:

Public Data → Highpass Filter → Bandpass Filter → CSP → NimbusLDA → Results Output

Here's how each stage maps to evaluation best practices:

• Highpass Filter (0.5 Hz cutoff) removes slow drift that would otherwise inflate CSP variance estimates.
• Bandpass Filter (8–30 Hz for motor imagery) isolates the mu and beta bands where ERD/ERS effects concentrate.
• CSP learns spatial filters that maximize class-discriminative variance. The filters are fit on training trials and applied to evaluation trials, with the csp_filters.pkl artifact persisted for inspection.
• NimbusLDA produces posterior probabilities rather than hard labels. This matters for two reasons: it enables confidence-gated evaluation (how often does the decoder abstain vs commit?), and it produces calibrated outputs that the Results Output node can display alongside confusion matrices and calibration curves.
• Results Output aggregates everything — per-fold accuracy, confusion matrices, and when running multi-subject, the population-level mean ± std that gives you a publishable benchmark number.

Reading Multi-Subject Results

When a benchmark graph finishes, the Results Output pane in Nimbus Studio surfaces a few numbers worth examining carefully.

First, look at per-subject accuracy before aggregate. A subject-by-subject view reveals outliers — subjects where the decoder consistently fails — that drive variance in your population estimate. If two subjects always land below 70%, that's a signal to investigate whether the issue is electrode placement consistency, subject engagement, or a preprocessing assumption that breaks on certain recording conditions.

Second, pay attention to confidence distributions alongside accuracy. Because NimbusLDA emits posterior probabilities, you can inspect entropy histograms per class and per subject. High entropy on correct predictions signals that the decoder is uncertain even when right — a relevant risk factor for deployment. The Nimbus Python SDK's evaluate_rejection_policy function lets you quantify this formally: what accuracy could you achieve if you abstained on the 10% of trials with highest entropy? (For a practical framework for entropy thresholds, temperature scaling, and accuracy–coverage tradeoffs, see Confidence-Gated BCI: How Entropy and Rejection Policies Keep Decoders Reliable in the Real World.)

Third, use cross-dataset consistency as a quality signal. Running the same pipeline on two or three public datasets and comparing results tells you whether your hyperparameter choices (filter cutoffs, CSP filter count, epoch length) are genuinely robust or merely tuned to one dataset's idiosyncrasies.

From Benchmark Score to Deployment Decision

A benchmark result isn't just a number for a paper — it's a decision input. Specifically, public dataset performance gives you a prior for how much private calibration data you need before a new user achieves acceptable accuracy.

Bayesian decoders like CSP + NimbusLDA tend to reach useful accuracy thresholds with fewer trials than deep learning alternatives, because they incorporate population-level priors from the benchmark distribution. If your public dataset benchmark shows that NimbusLDA achieves 80% mean accuracy with 50 trials, you can use that as a baseline expectation for new-user onboarding — and configure the Nimbus Studio calibration wizard accordingly. (If you want the full end-to-end workflow from live capture through structured export to a trained decoder, see BCI Calibration with Nimbus Studio: From Hardware to Trained Decoder.)

Conversely, if benchmark results show high subject-to-subject variance, that's a prompt to invest in hierarchical Bayesian modeling or longer calibration sessions for users whose preliminary performance places them in the lower tail of the distribution.

Conclusion

Benchmarking on public datasets is not just a validation step — it's the difference between a decoder that works for your lab and one that works for your users. Nimbus Studio's Public Data node, combined with Cross Validation and Results Output, makes MOABB-style multi-subject evaluation a first-class part of the pipeline rather than an afterthought. Run the benchmark early, read the per-subject results carefully, and let the aggregate numbers and calibration curves guide your deployment choices. The EEG is honest; your evaluation protocol should be too.
