Epoch Design and Trial Structure in BCI: How Your Protocol Shapes Your Decoder

When BCI engineers hit accuracy ceilings, the first instinct is to swap classifiers: try a deeper network, tune hyperparameters, add more features. But more often than the field admits, the real bottleneck was set much earlier — in the epoch design. The way you slice continuous EEG into labeled windows determines what signal reaches your model and what noise it must wade through. Get it wrong, and no amount of model sophistication recovers it.

This post unpacks trial structure as a first-class engineering decision. We will cover epoch length, baseline correction, overlap stride, event alignment, and inter-trial intervals — and show how Nimbus Studio's Trial Protocol and Epoching nodes let you iterate on these choices systematically, without rewriting preprocessing from scratch each time. If you’re building a full calibration flow end to end, see BCI Calibration with Nimbus Studio: From Hardware to Trained Decoder.

What Is an Epoch, Really?

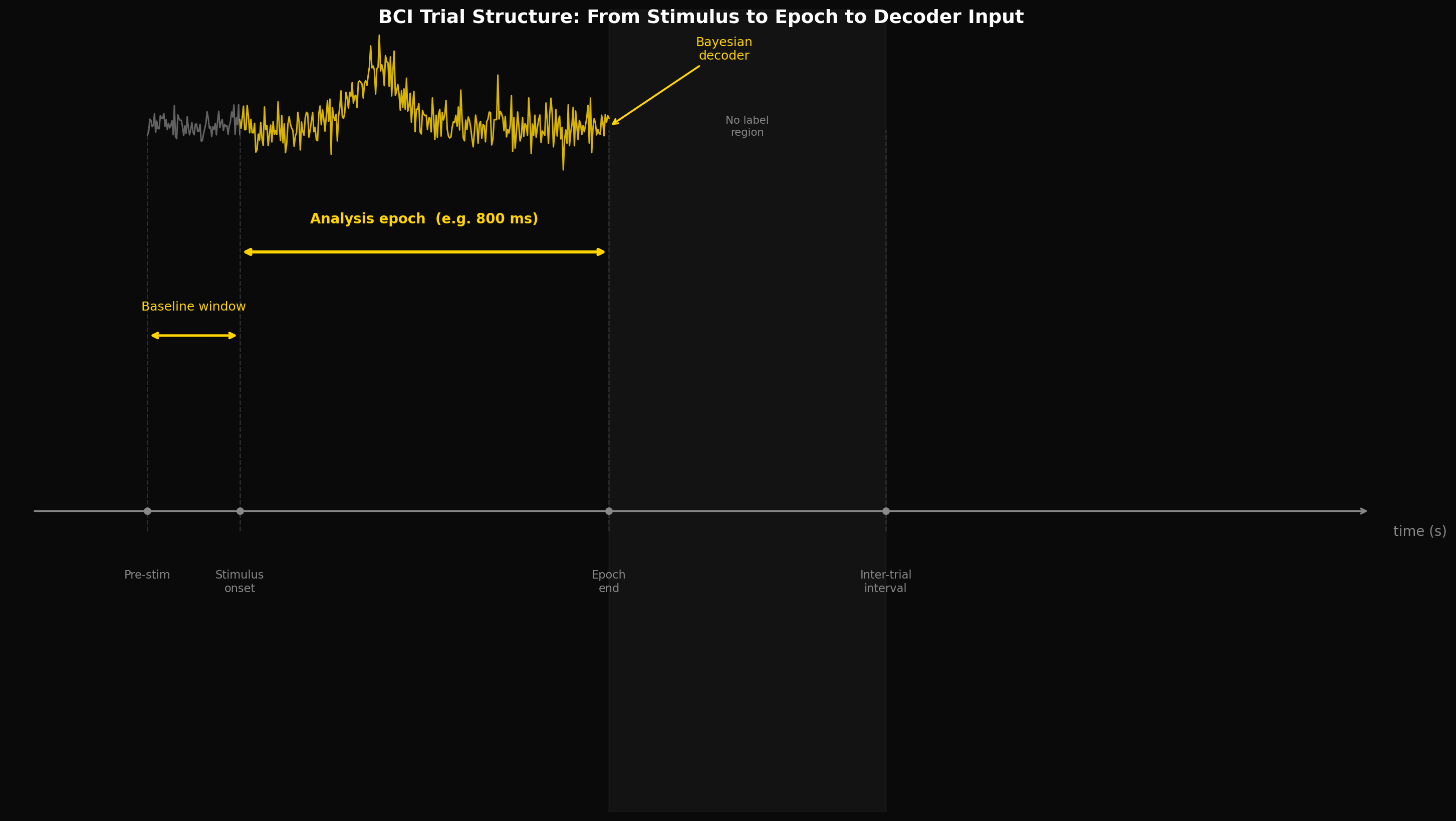

An epoch is a fixed-length segment of EEG time-locked to a reference event — a stimulus onset, a button press, a cue. It is the fundamental unit your classifier trains and predicts on.

But an epoch is not just a window. It is a hypothesis about where the relevant signal lives in time. A 300 ms epoch assumes the neural signature of interest peaks within 300 ms of the cue. An 800 ms epoch assumes the response develops more slowly, or that you need the full sustained activity. A 100 ms epoch assumes you are dealing with an early sensory response.

Every epoch choice is therefore a modelling decision, and like all modelling decisions, it can be right or wrong — and it interacts with everything downstream.

In Nimbus Studio, the Epoching node is where time-locking lives for continuous EEG with event markers: it segments data into fixed windows aligned to events using tmin and tmax. Baseline subtraction is a separate Baseline Correction node (typically placed after epoching). For live calibration, trial boundaries are set in Trial Protocol and applied at export by Calibration Recorder — so epoch length is often a protocol decision, not an Epoching parameter.

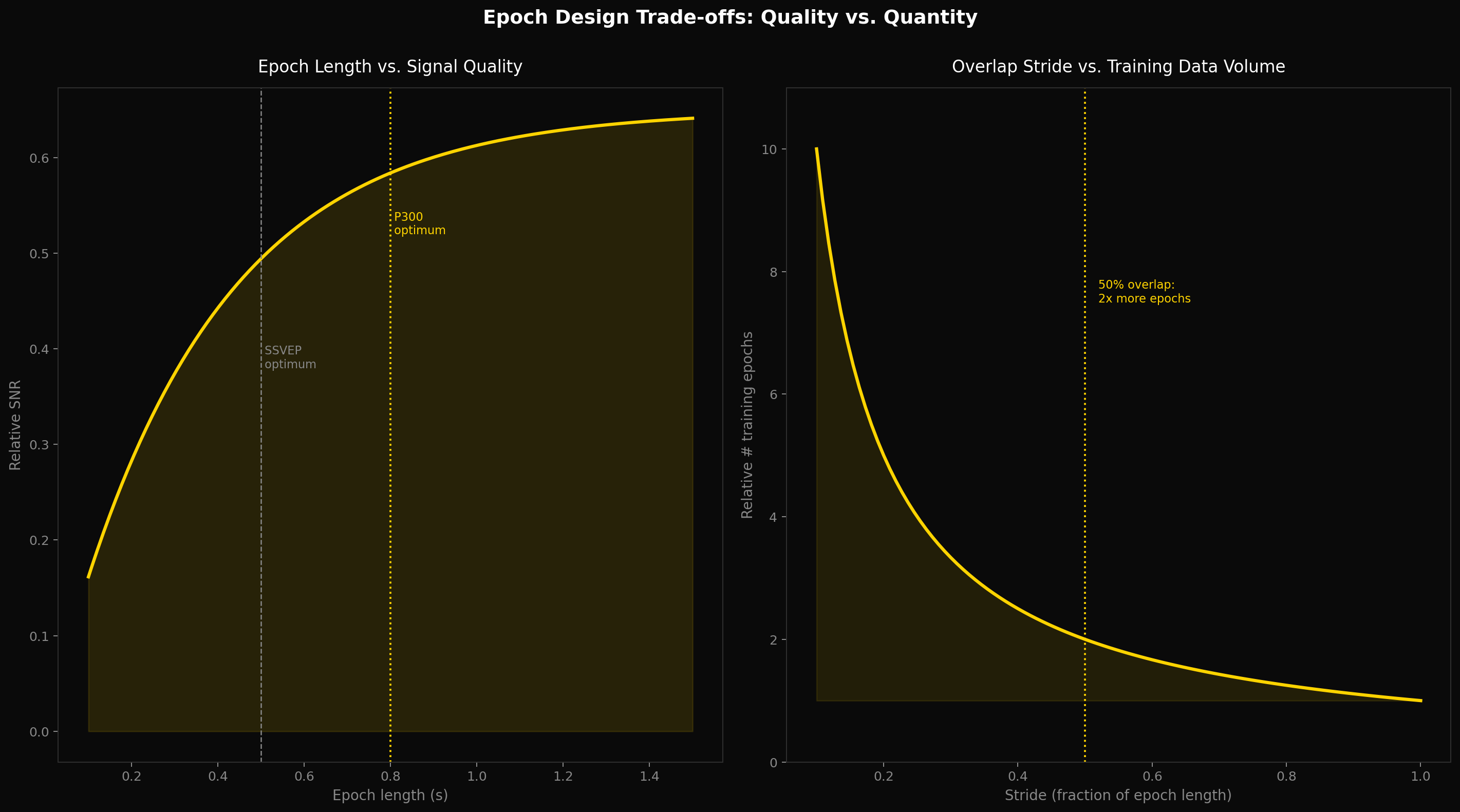

Epoch Length: The SNR-Latency Trade-off

Longer epochs generally improve signal-to-noise ratio. Averaging or integrating over more time smooths out noise that is uncorrelated with the stimulus. For P300 paradigms, an epoch of 600–900 ms is standard because the P300 component peaks around 300–500 ms post-stimulus, and you need enough post-peak activity to distinguish it from baseline.

For SSVEP paradigms, the trade-off tips the other way. The signal is a continuous oscillation phase-locked to the flickering stimulus, and you can detect it reliably in as little as 250–500 ms. Longer epochs increase your information transfer rate only up to a point before the marginal SNR gain is outweighed by the trial duration cost.

For Motor Imagery, epoch choice is trickier. The relevant Event-Related Desynchronization (ERD) unfolds over 1–3 seconds and may not peak at a fixed latency across users. A common approach is to use a 1-second epoch with a 250–500 ms offset from the cue, but this benefits from per-user validation.

The practical upshot: epoch length is not a hyperparameter to tune at the end. It should be set based on the paradigm's known temporal dynamics, then held fixed while the classifier is tuned. Changing epoch length mid-optimization conflates two sources of variance.

Baseline Correction: The Hidden Preprocessing Step

A baseline window is the pre-stimulus segment used to subtract the mean (or z-score) neural activity before the event. It removes slow drifts, electrode offsets, and ongoing oscillations that are unrelated to the stimulus.

The interaction between baseline length and epoch length matters more than most tutorials acknowledge. If your baseline window is too short (< 100 ms), it captures too little pre-stimulus signal to reliably estimate the baseline mean — particularly for low-frequency components. If it is too long, it starts to overlap with anticipatory activity (which some paradigms intentionally try to decode).

For Bayesian classifiers like those in the Nimbus Python SDK, baseline correction is also relevant because NimbusLDA and NimbusQDA assume stationarity of the class-conditional distributions. A poor baseline correction introduces a non-zero mean that shifts those distributions and inflates off-diagonal covariance terms — directly hurting the classifier's discriminability.

In Nimbus Studio, Bandpass Filter → Epoching → Baseline Correction is the usual offline chain: the filter removes slow drift on continuous data, epoching time-locks segments around events, and the separate Baseline Correction node subtracts a pre-stimulus window (mean or median) on each trial. On already-epoched uploads — including calibration HDF5 — you can skip Epoching and apply Baseline Correction directly when your epochs include enough pre-stimulus samples.

Overlap Stride: Trading Quality for Quantity

When training data is limited — which in BCI it almost always is — overlapping epochs can significantly increase the number of labeled examples available to your classifier. With a stride of 50% of the epoch length, you double the number of training epochs from a fixed recording. With 25%, you quadruple it.

This is not free. Overlapping epochs are statistically correlated: the same raw EEG samples appear in multiple labeled windows. This violates the i.i.d. assumption most classifiers make, and if you do not account for it during cross-validation, you will get optimistically biased accuracy estimates.

The practical rule: use overlapping epochs to augment training data, but perform cross-validation at the trial level, not the epoch level. Never split overlapping epochs across train and test splits — keep all epochs derived from the same trial on the same side of the fold boundary.

Nimbus Studio exposes overlapping windows in the Data Augmentation node (Sliding Window method and windowOverlap). The legacy Cross Validation node was retired in May 2026 — use Evaluation Plan for trial-level K-fold, stratified K-fold, LOSO, and LOSCO. When you augment with overlapping windows, keep all slices derived from the same trial on the same side of each fold.

Event Alignment and Latency Offsets

Event markers are not always perfectly aligned with the neural response of interest. Hardware introduces latency: screen refresh delays (typically 8–16 ms for a 60 Hz display), audio buffer latency, and USB HID delays for button presses. If you feed uncorrected event markers to your epoching node, your epochs may be systematically misaligned — and the misalignment may vary across trials or hardware setups.

In Nimbus Studio, the Trial Protocol node manages stimulus presentation and emits trial events during structured calibration. Markers are sample-aligned to the backend protocol loop (fixation → optional prepare / cueOffsetSec → active imagery window → rest). They reflect when the server records the active window — not automatic compensation for display refresh or USB HID delay. cueOffsetSec is paradigm timing (delay before the labeled active window), not a hardware-latency knob.

When you record with Trial Protocol → Calibration Recorder, export is already epoched (C, T, N) at trial boundaries; Custom Data loads it for training without a separate epoching step. For external stimulators or continuous recordings with your own markers, set alignment in Epoching via tmin / tmax (there is no separate “event offset” parameter). A 16 ms error on a 400 ms epoch is 4% of your analysis window; on a 100 ms epoch, it is 16%. At that scale, it will shift your early components out of the window entirely.

Shipped today: motor-imagery text cues and SART. Full P300/SSVEP stimulus engines remain on the roadmap — check release notes before promising those flows in production.

In practice, these small shifts can also masquerade as “model drift” or “classifier instability” across sessions, so it helps to treat epoch alignment as part of your non-stationarity toolbox alongside online adaptation strategies like Continual Learning in BCI: Handling Neural Drift with Online Bayesian Updates.

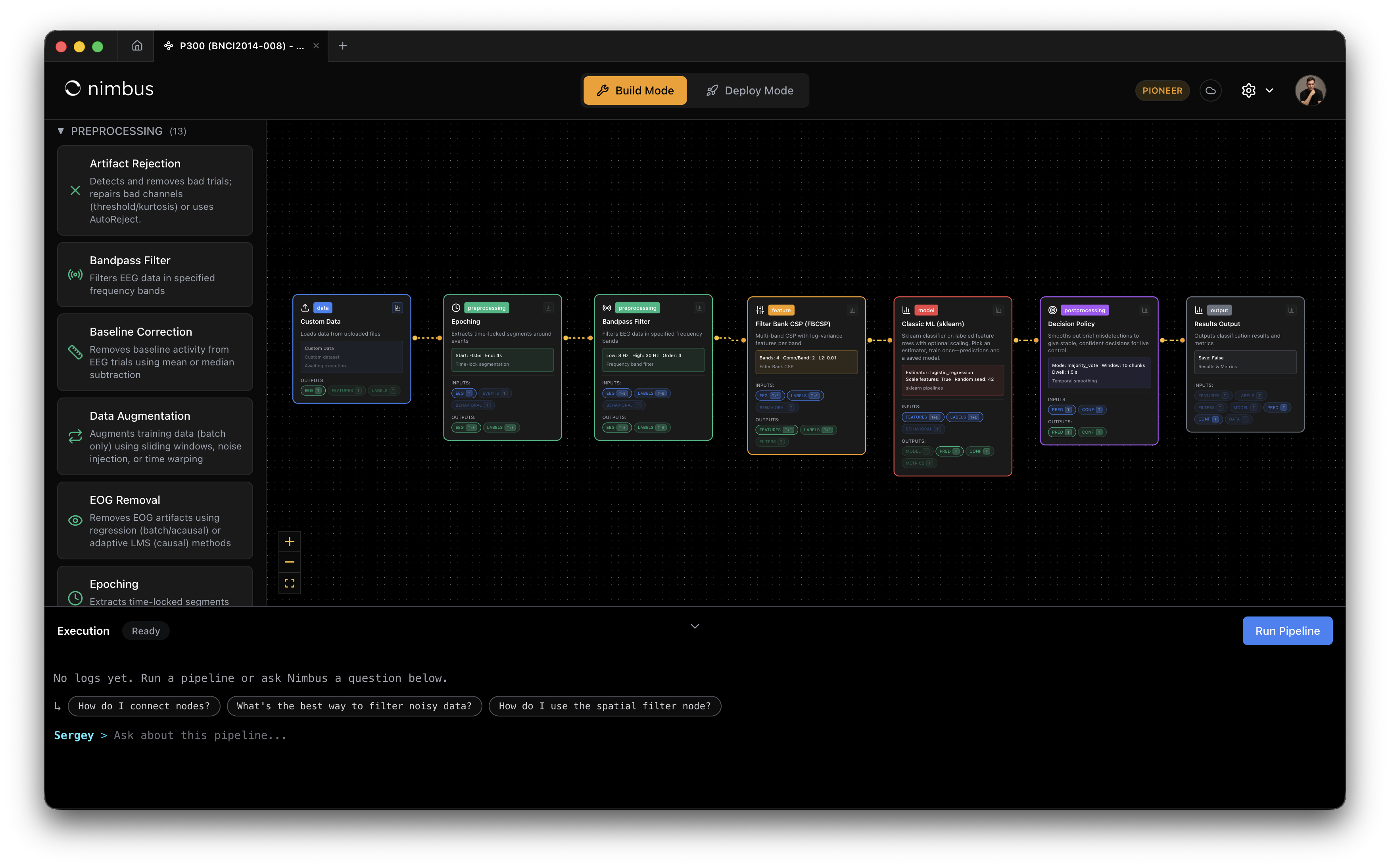

Putting It Together in Nimbus Studio

Nimbus Studio has two epoch-design paths:

Calibrate path (live recording):

1. Design trial structure in Trial Protocol: trials per class, cueDurationSec, cueOffsetSec, rest/ITI, randomization.
2. Record and export with Calibration Recorder → HDF5 (already epoched per trial).
3. Load via Custom Data and wire into preprocessing (filter → Baseline Correction if needed → CSP/features → Nimbus SDK classifier).
4. Validate with Evaluation Plan (trial-level folds).

Offline / public-data path:

1. Load Public Data or continuous Custom Data with event markers.
2. Bandpass Filter → Epoching (tmin / tmax) → Baseline Correction.
3. Optional Data Augmentation (sliding_window + windowOverlap) for overlapping training windows.
4. Evaluation Plan → Features + model for unbiased trial-level CV.

Because nodes are wired in the pipeline graph, changing epoch bounds means updating one parameter and rerunning — not rewriting a preprocessing script. That iteration loop belongs in early experiment design, not late-stage debugging.

Conclusion

Epoch design is not a preprocessing detail — it is an experimental hypothesis encoded in your pipeline. Epoch length determines which neural components you capture. Baseline windows condition away sources of noise that would otherwise inflate classifier variance. Overlap stride multiplies training data at the cost of correlation you must respect in validation. Event alignment determines whether your epochs are time-locked to the response or to hardware artifacts.

The BCI engineers who move fastest are the ones who treat these parameters as first-class decisions, iterated early and validated rigorously. Nimbus Studio's Trial Protocol, Calibration Recorder, Epoching, Baseline Correction, Data Augmentation, and Evaluation Plan nodes are designed to make that iteration loop fast — so that by the time you reach the classifier, you are giving it the best possible view of the signal.
