SSVEP Decoding with CCA: Building an SSVEP Classifier Pipeline in Nimbus Studio

Most EEG-based BCI pipelines share a common bottleneck: before you can decode anything, you need a calibration session. The user must imagine dozens of movements, wait while a model trains, and hope the session-to-session variability doesn't erase the gains. Motor Imagery (MI) pipelines — even well-designed ones using CSP and Bayesian classifiers from the Nimbus Python SDK — inherit this constraint by design.

Steady-State Visual Evoked Potentials (SSVEP) change the contract at the feature layer. Because you choose the flicker frequencies, you can build deterministic sine/cosine references a priori. Canonical Correlation Analysis (CCA) scores each EEG epoch against those references — without learning subject-specific spatial filters the way CSP does for MI. In Nimbus Studio, those correlation scores become features for a supervised classifier (Nimbus LDA or logistic regression in the shipped starters).

This post explains how SSVEP works, why CCA is the natural feature extractor, and how to assemble the full pipeline in Nimbus Studio — matching the featured Lee 2019 starter template — from public data or live hardware through to stable streaming predictions.

What Is SSVEP and Why Does It Matter?

When the visual cortex is exposed to a flickering light source at a fixed frequency — say, 10 Hz — the brain produces a measurable electrical oscillation at exactly that frequency (and its harmonics: 20 Hz, 30 Hz…). This is the Steady-State Visual Evoked Potential. It is not subtle: SSVEP responses are among the highest signal-to-noise EEG phenomena, often detectable from only a few occipital electrodes.

The BCI implication is elegant. If you display four targets on a screen — each flickering at a distinct frequency (6 Hz, 8 Hz, 10 Hz, 12 Hz, for example) — the user's visual cortex will resonate at whichever frequency they're attending to. Look at the 10 Hz target, and your EEG will show a strong 10 Hz component. Look away, and it won't. Gaze direction becomes a communication channel without requiring any motor imagery or voluntary neural modulation.

For engineers, this matters for two reasons:

• Known reference signatures. Because you choose the flicker frequencies, you know the expected neural oscillation a priori. CCA can match EEG to those sinusoids without training subject-specific spatial filters.
• High information transfer rate. Research SSVEP systems often report information transfer rates on the order of tens of bits per minute (commonly cited around 40–60 bits/min for strong lab setups). That is literature performance — not a measured Nimbus Studio benchmark.

💡 Product note: In Nimbus Studio, “zero-calibration” Deploy apps (Focus Meter, Relaxation Meter, Blink-to-Click) are separate from SSVEP. Those indicator/event presets need no classifier training. The SSVEP starters below still train a supervised head on labelled epochs.

CCA: Matching EEG to Reference Sinusoids

Canonical Correlation Analysis finds linear projections of two multivariate signals that are maximally correlated. In SSVEP feature extraction, one signal is the multichannel EEG epoch; the other is a set of synthetic reference sinusoids at each candidate stimulus frequency and its harmonics.

For a target frequency f, the reference matrix contains sine and cosine pairs at f, 2f, 3f, and so on:

Y_f = [sin(2π·f·t), cos(2π·f·t), sin(4π·f·t), cos(4π·f·t), …]

Nimbus Studio’s CCA (SSVEP) node implements Lin et al. (2006) per-trial reference CCA: for each epoch and each configured frequency, it fits CCA against the sinusoid set and returns the first canonical correlation ρ(f). The node output is a feature vector — one ρ per configured frequency — not a class prediction.

In the classic literature, decoding is often simply argmax_f ρ(f). In Studio, the shipped starters feed those ρ features into a classifier so you get calibrated decisions, rest-class handling, and the same model/deploy path as other paradigms.

The key insight is that the reference signals are deterministic and frequency-specific — they depend only on your stimulus design, not on the user. That is why CCA needs no subject-specific filter fit across trials. The node’s prior is the flicker frequency list you define in settings (defaults [8, 12, 15] Hz; Lee 2019 starters use [6.67, 8.57, 12.0]).

Building the Pipeline in Nimbus Studio

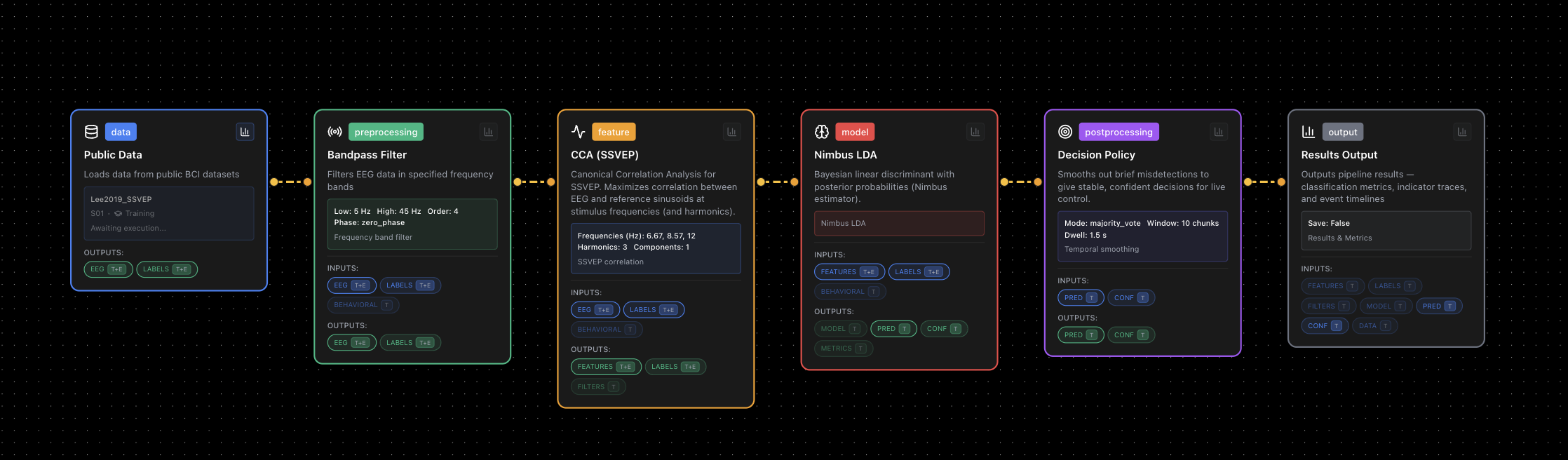

The featured starter is SSVEP (Lee 2019, MOABB) — CCA → Nimbus LDA. A twin template swaps LDA for Classic ML (logistic regression). Both follow the same structure:

Public Data / Hardware Device. The Lee 2019 starter loads MOABB Lee2019_SSVEP (subject S01, training mode). For live work, Hardware Device streams EEG via BrainFlow or LSL. Semantic channel mapping is recommended — naming occipital electrodes (O1, Oz, O2, POz, etc.) keeps montage geometry readable downstream.

Bandpass filter. The shipped template uses 5–45 Hz, covering fundamentals and harmonics used by CCA (defaults use 3 harmonics). For custom live graphs you may also add highpass/notch for drift and line noise — but keep stimulus harmonics out of the notch band. A 10 Hz stimulus with a third harmonic at 30 Hz is fine; a harmonic near 50/60 Hz may be attenuated by a power-line notch.

Epoching. Lee 2019 packs are already epoched (~4 s trials). On continuous streams, slice into fixed-length windows aligned to your stimulus cycle. Longer windows (2–4 s) give CCA more frequency resolution but increase latency; 1–2 s sliding windows are a practical real-time starting point.

CCA (SSVEP) computes the ρ feature vector. Configure stimulus frequencies and harmonic count (typically 2–3). The node also writes cca_filters.pkl for deploy: for Lin CCA this checkpoints the frequency list, harmonics, and epoch geometry so streaming recomputes the same per-trial correlations — it does not store cross-trial spatial filters.

Nimbus LDA — the featured head — maps CCA features to class posteriors. Lee 2019 labels include flicker classes plus rest; the supervised head is what absorbs rest, not a fourth sinusoid. A twin template uses Classic ML logistic regression instead. Nimbus Softmax is a valid alternate Bayesian head if you want the same probabilistic tooling you use elsewhere — it is optional, not the default SSVEP starter.

Decision Policy stabilises streaming output with majority vote or debouncing across recent prediction windows. Gaze drift and blinks can produce transient misclassifications; temporal smoothing suppresses them without the lag of a very long integration window.

Frequency Selection and Common Pitfalls

The choice of flicker frequencies shapes both user comfort and decoding accuracy:

• Avoid multiples of each other. If 6 Hz is one target, avoid 12 Hz as another — the second harmonic of 6 Hz would contaminate the 12 Hz reference correlation.
• Stay within ~6–30 Hz. Below ~6 Hz, SSVEP responses are typically weaker. Above ~30 Hz, responses fall off and muscle artifact (EMG) dominates. Photosensitivity risk is a separate safety concern and is often highest for mid-range flicker (around the mid-teens Hz) — follow clinical/safety guidance for your users and jurisdiction.
• Mind your monitor's refresh rate. A 60 Hz display cannot render a true 7 Hz flicker; it will produce the nearest achievable frequency given the frame rate. Verify intended frequencies against your display before finalising stimulus design.
• Include harmonics thoughtfully. More harmonics increase CCA sensitivity but also raise cross-frequency contamination risk. Two or three harmonics are typically sufficient.

A practical validation step: run the Public Data Lee 2019 CCA → LDA starter (or your own graph against another MOABB SSVEP set). Inspect classifier Results Output — confusion / accuracy on held-out folds via Evaluation Plan when you need honest estimates. The Lee starter notes training mode only (no packaged train/test split), so add Evaluation Plan or external CV before treating a run as a published benchmark.

SSVEP, Active Inference, and Probabilistic BCI

For teams already using the Nimbus stack's probabilistic philosophy, SSVEP opens an interesting design space. Because CCA produces a correlation vector — evidence over candidate frequencies — those scores (and the classifier posteriors built on them) can feed a broader generative model.

In an Active Inference framing, the SSVEP observation updates the agent's belief over attended targets. Expected Free Energy then guides whether to commit to the current window or request another observation to reduce uncertainty. That maps naturally to Decision Policy smoothing and confidence thresholds on the Studio streaming path.

For multi-target control, SSVEP becomes a high-bandwidth sensory channel inside a larger probabilistic architecture. The Nimbus Python SDK’s entropy and rejection APIs apply here too: ambiguous posteriors (two frequencies close in ρ or class probability) can be flagged for re-observation rather than silently misfired.

Conclusion

SSVEP remains one of the most practically accessible BCI paradigms for engineers who can show a flicker display: strong SNR at occipital sites, transparent reference matching via CCA, and a clear path from features to decisions. Nimbus Studio’s CCA node implements Lin-style per-trial correlations; the featured Lee 2019 starters classify those features with Nimbus LDA (or Classic ML) and smooth deploy output with Decision Policy.

If your application can accommodate flickering stimuli — assistive selection, gaming, or hands-free control prototypes — start from the hub’s SSVEP CCA → LDA template, set frequencies to match your stimulus design, and add Evaluation Plan when you need held-out metrics. The same uncertainty tooling you’d use for Motor Imagery — entropy gating, confidence thresholds, online adaptation on Bayesian heads — sits above the paradigm once a classifier is in the graph.
