BCI Calibration with Nimbus Studio: From Hardware to Trained Decoder

Calibration is one of the most underappreciated bottlenecks in applied BCI engineering. A motor imagery session can require on the order of tens of labeled trials before a classical CSP + LDA pipeline reaches usable accuracy. P300 spellers can fare better per epoch, but still often demand repeated averaging per symbol. In a research context this is an inconvenience. In a clinical or consumer product, it is often the reason a system never leaves the lab.

This post walks through how Nimbus Studio's structured calibration pipeline — and the probabilistic classifiers in the Nimbus Python SDK — compress that bottleneck from an hour-long ritual into a focused, reproducible workflow.

Why Calibration Is Hard (and Where Classical Pipelines Break)

The core problem is distribution shift. An EEG classifier trained on one day's recording will degrade on another day's — sometimes within minutes of the same session. Electrode impedance drifts, mental fatigue shifts spectral power, and subtle postural changes alter spatial source mixing. (For a deeper engineering treatment of this failure mode, see Continual Learning in BCI: Handling Neural Drift with Online Bayesian Updates.) Classical pipelines respond by collecting more data: more trials, more sessions, more annotation time.

But there is a deeper issue: most calibration workflows are entirely ad hoc. Engineers record a raw file, write a one-off loader, label events manually, and feed the result into a pipeline that shares no code with the deployment path. There is no standard cue delivery, no structured output format, and no reusable preprocessing chain between calibration and live inference. When the pipeline breaks — because an event marker was off by 50 ms, or the file layout differed between sessions — debugging consumes the time the calibration was supposed to save.

Nimbus Studio addresses both problems: the data-efficiency problem through Bayesian classifiers, and the workflow-fragmentation problem through a first-class, graph-native calibration pipeline.

The Nimbus Studio Calibration Pipeline

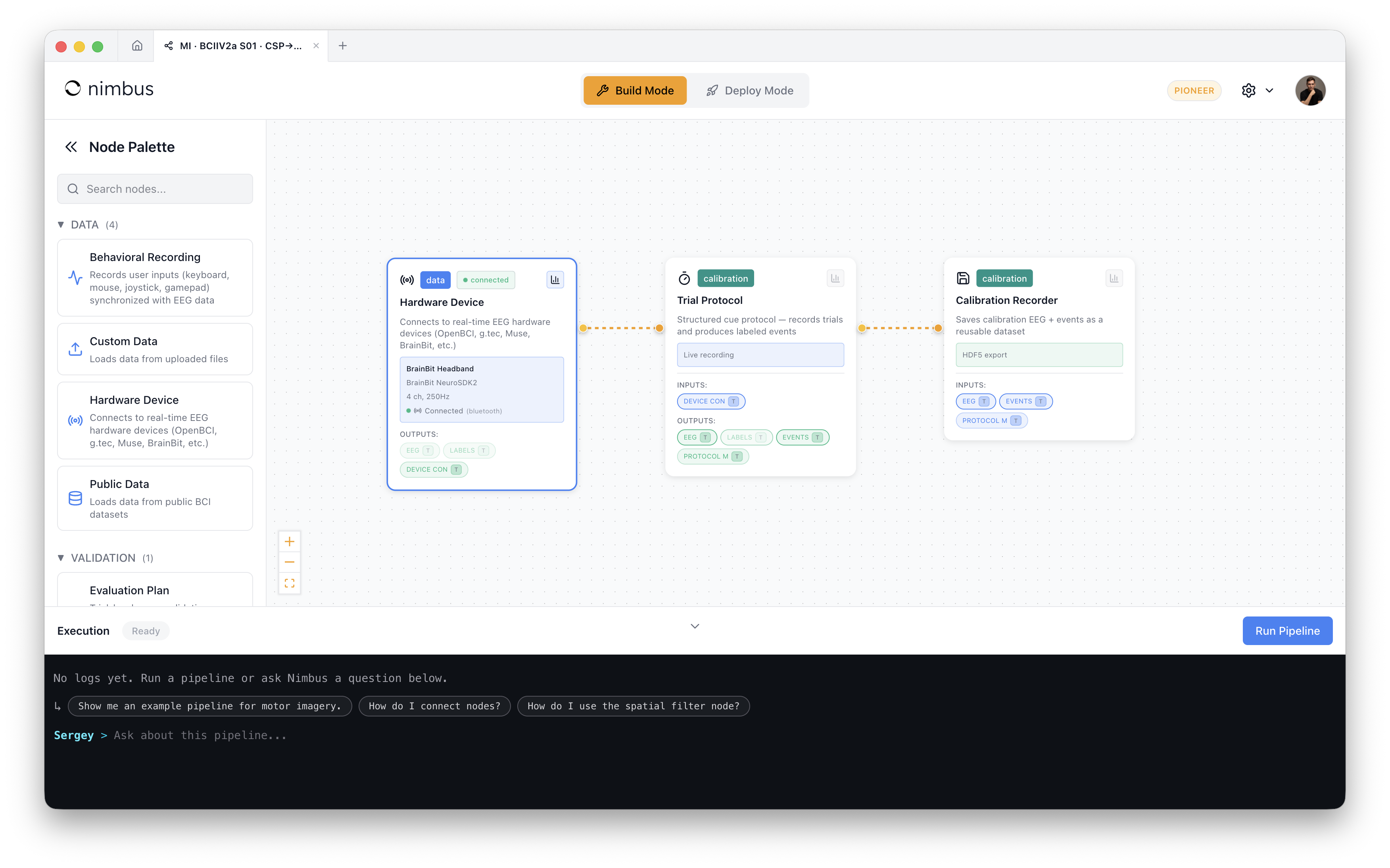

Nimbus Studio's calibration flow chains four nodes together without custom glue code.

hardware_device is the root of every live graph. It manages hardware connection — including an explicit connect step before the streaming WebSocket opens — and abstracts over BrainFlow and LSL sources. Crucially, it supports semantic channel mapping: you label device channels with standard 10–20 names once, and the correct spatial topology flows through every downstream node consistently, session to session.

trial_protocol delivers the cues. It drives the visual or auditory paradigm — inter-trial intervals, stimulus timing, class schedule — and injects event markers into the EEG stream at sample precision. Because cue delivery and EEG recording share the same graph, marker latency is deterministic and auditable. This replaces the ad hoc event-sending scripts most teams maintain separately.

calibration_recorder captures the marked stream and writes it to a structured HDF5 file. The output layout matches exactly what custom_data expects: epochs, labels, channel names, and sampling rate in a documented schema. No post-hoc reformatting, no fragile one-off converters. The HDF5 is portable — you can share it with a collaborator who loads it directly into their own Nimbus Studio training graph.

custom_data closes the loop: it reads the HDF5 produced by calibration_recorder, feeds it through your preprocessing chain, and drives training. Because the file format is fixed, swapping in a different session's recording is a one-field change in the node settings. The repo ships a ready-made starting point at storage/templates/calibration/mi_hardware_calibration.yaml — hardware connect, trial protocol, recorder, and a downstream CSP + classifier already wired together.

Bayesian Classifiers and the Data-Efficiency Advantage

Nimbus Studio's training graphs feed directly into the Nimbus Python SDK classifiers: NimbusLDA, NimbusQDA, NimbusSoftmax, and the experimental NimbusSTS. Each produces a full posterior over class labels rather than a point estimate — and that distinction matters for calibration efficiency. (If you're deciding which classifier belongs in your pipeline before you calibrate, start with Choosing the Right Bayesian Classifier for Your BCI Pipeline.)

A classical LDA model has no mechanism to express uncertainty about its own parameters when trained on twelve trials. A Bayesian LDA model does: the posterior is wide when data is scarce and narrows as trials accumulate. This means you can begin deploying a NimbusLDA decoder early in a session and use calibrated entropy scores — available in predict_batch — to decide when the model is reliable enough for real use. High entropy flags trials where the model is still uncertain; low entropy indicates confident, actionable predictions. Rather than waiting for a fixed trial count, you let the model tell you when it is ready.

NimbusQDA extends this to class-specific covariance matrices — important for paradigms where different mental states produce different EEG spread patterns, not just different means. With a Bayesian prior on the covariance, NimbusQDA avoids overfitting on the small per-class sample counts typical of early calibration.

For paradigms where within-session drift matters — fatigue, electrode impedance change, attention fluctuation — NimbusSTS acts as both a calibration-time and deployment-time model. Its latent state-space representation can be initialized from a short calibration run and updated online via partial_fit as the session progresses, without ever requiring a full retrain.

Cross-Session Reuse: Carrying Priors Forward

One of the compounding benefits of Bayesian classifiers is that posteriors from one session become priors for the next. After a successful calibration run, nimbus_save serializes the trained model — including posterior parameter distributions — to disk. On day two, nimbus_load restores that model and training begins from an informed prior rather than a flat one. (This is the core idea behind Cross-Session BCI Transfer with Bayesian Priors: Reuse, Adapt, and Personalize.)

In practice this means the second session needs fewer labeled trials to reach the same accuracy as the first, and the third fewer still. For long-running deployments — clinical assistive devices, research participants returning across weeks — this compound effect is significant. It is also the foundation of the cross-session normalization pattern the SDK supports: fit a normalizer on calibration data, fix it after the session ends, and apply the same fixed transform on day two so the feature distribution the classifier sees remains stable.

The SDK's temperature_scale_proba and evaluate_rejection_policy utilities let you audit model calibration — ECE and MCE — before committing to a deployment, so you know whether the confidence scores you are acting on are actually reliable.

From Hardware to Deployed Decoder: The Full Sequence

Putting the pieces together, a complete calibration-to-deployment cycle in Nimbus Studio looks like this:

1. Connect hardware. Open a graph rooted at hardware_device. Configure channel mapping with 10–20 semantic labels. Start the node to confirm a clean stream before the participant sits down.
2. Run the protocol. Add trial_protocol (stimulus timing, class schedule, rest intervals) and calibration_recorder (HDF5 output path). Start the graph. The participant completes the paradigm while event markers flow automatically into the recording.
3. Train offline. Open a second graph with custom_data pointing at the HDF5 file. Wire in the preprocessing chain — highpass, bandpass, epoching, csp — followed by a Nimbus SDK classifier node. Run batch execution and inspect results_output for accuracy, ECE, and the confusion matrix.
4. Gate on confidence. Before going live, use predict_batch entropy scores to set a rejection threshold. Trials below the confidence gate are held for re-query rather than acted on — a one-line policy change that can substantially reduce error rates in assistive applications.
5. Deploy. The trained model artifacts persist on disk. Swap custom_data for hardware_device and run the live deployment graph. The preprocessing chain is identical; the classifier picks up where training left off. For NimbusSTS, the propagate_state() / partial_fit loop keeps the decoder tracking any drift that emerges during the session.
6. Save for next time. Call nimbus_save at session end. Load the posterior on the next visit. The calibration burden decreases with every session.

Conclusion

Calibration is not a solved problem in BCI — but it is a much more tractable one when the workflow is structured. Nimbus Studio's hardware_device → trial_protocol → calibration_recorder → custom_data chain eliminates the fragile glue code that makes most calibration pipelines brittle. The Nimbus Python SDK's Bayesian classifiers turn limited calibration data into a genuine advantage: wide posteriors acknowledge uncertainty early, narrow posteriors confirm readiness, and saved posteriors make every subsequent session faster than the last.

The result is a calibration workflow that is reproducible, auditable, and efficient — one that gets out of the way so engineers can focus on building decoders that actually work outside the lab.
