Active Learning for BCI Calibration: How Bayesian Uncertainty Drives Smarter Trial Selection

Most BCI calibration protocols treat the subject like a passive data source: present 80 cued trials in a fixed order, record the EEG, train the classifier offline. It works — but it wastes time. For every trial spent on a movement class the model has already learned to distinguish confidently, there is a trial that could have been spent probing the decision boundary where confusion actually lives.

Active learning changes that. Instead of following a fixed trial schedule, the calibration loop asks: where is the model most uncertain right now? The answer — computed directly from the Bayesian posterior your NimbusSDK classifier already produces — determines which class to cue next. The result is a decoder that reaches the same accuracy with substantially fewer trials, translating directly into shorter, more comfortable calibration sessions for users.

Why Fixed Protocols Leave Data on the Table

A standard motor-imagery calibration session distributes trials uniformly across classes. That design is easy to implement and guarantees balanced class counts — but it ignores the model's evolving state of knowledge. Early in training, all trials are informative; the classifier has seen almost nothing. But after 30 or 40 trials, the class means in CSP feature space are already well-estimated for most users. Additional trials in the high-confidence regions of feature space contribute marginally to the posterior — while the decision boundary, where misclassifications will actually occur during deployment, remains poorly resolved.

A fixed protocol has no mechanism to notice this. It will continue presenting left-hand and right-hand imagery trials at a 1:1 ratio whether the model needs them or not.

Bayesian Posteriors as an Uncertainty Signal

This is where the Nimbus Python SDK's probabilistic design pays off in an unexpected way. Every call to predict_batch or the streaming inference path returns not just a class label, but a full posterior distribution over classes. For NimbusLDA and NimbusQDA, this posterior is calibrated — the probability scores genuinely reflect the model's confidence given the data seen so far. If you're new to using entropy as a deployment-grade reliability signal, see Confidence-Gated BCI: How Entropy and Rejection Policies Keep Decoders Reliable in the Real World.

The predictive entropy of that posterior is a principled uncertainty measure:

import numpy as np

def predictive_entropy(probs: np.ndarray) -> float:
    """Shannon entropy of the class probability vector."""
    probs = np.clip(probs, 1e-9, 1.0)
    return -np.sum(probs * np.log(probs))

High entropy means the model assigns roughly equal probability to all classes — it genuinely does not know what to predict. Low entropy means the model is confident. An active calibration loop uses entropy to rank candidate trials: whichever class or stimulus condition would maximally resolve the model's current uncertainty gets presented next.

This is not a heuristic trick. In the language of Active Inference, entropy corresponds directly to the epistemic value component of Expected Free Energy — the information gain an agent expects from taking a particular action. Choosing calibration stimuli to minimize expected posterior entropy is exactly what an Active Inference agent would do when its goal is to build an accurate world model as quickly as possible.

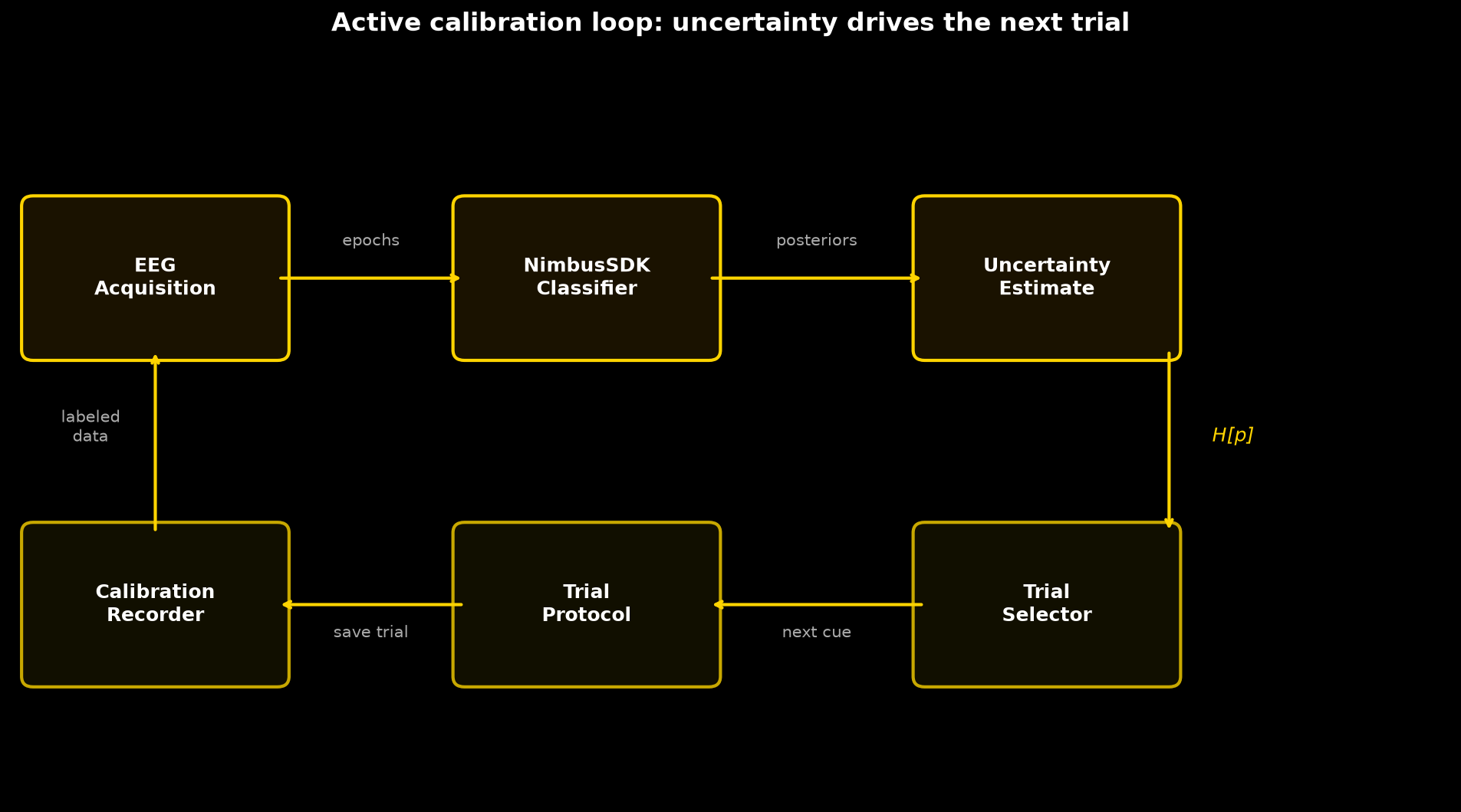

The Active Calibration Loop in Nimbus Studio

Implementing active trial selection in Nimbus Studio requires connecting a few existing nodes in a feedback arrangement rather than the usual linear pipeline (if you want the fully structured end-to-end calibration workflow first, start with BCI Calibration with Nimbus Studio: From Hardware to Trained Decoder):

1. Hardware Device streams live EEG from the connected headset.
2. Highpass Filter → Bandpass Filter → Epoching produce clean, event-locked trials — same as any calibration graph.
3. A lightweight NimbusLDA (or NimbusQDA) instance runs inference on each incoming trial, accumulating labeled data and refitting periodically via partial_fit.
4. The model's posterior entropy is computed for each candidate class.
5. A Trial Selector (implemented as a custom post-processing step) routes the highest-entropy class to the Trial Protocol node as the next cue.
6. The labeled trial is written to the Calibration Recorder, building the HDF5 dataset that a full offline training run will consume later.

The Trial Protocol node is designed to accept dynamic cue sequences via WebSocket, which makes it well-suited to this adaptive pattern. Rather than reading from a fixed YAML-defined schedule, the executor can push the next class label as each epoch completes.

What Uncertainty-Driven Selection Looks Like in Feature Space

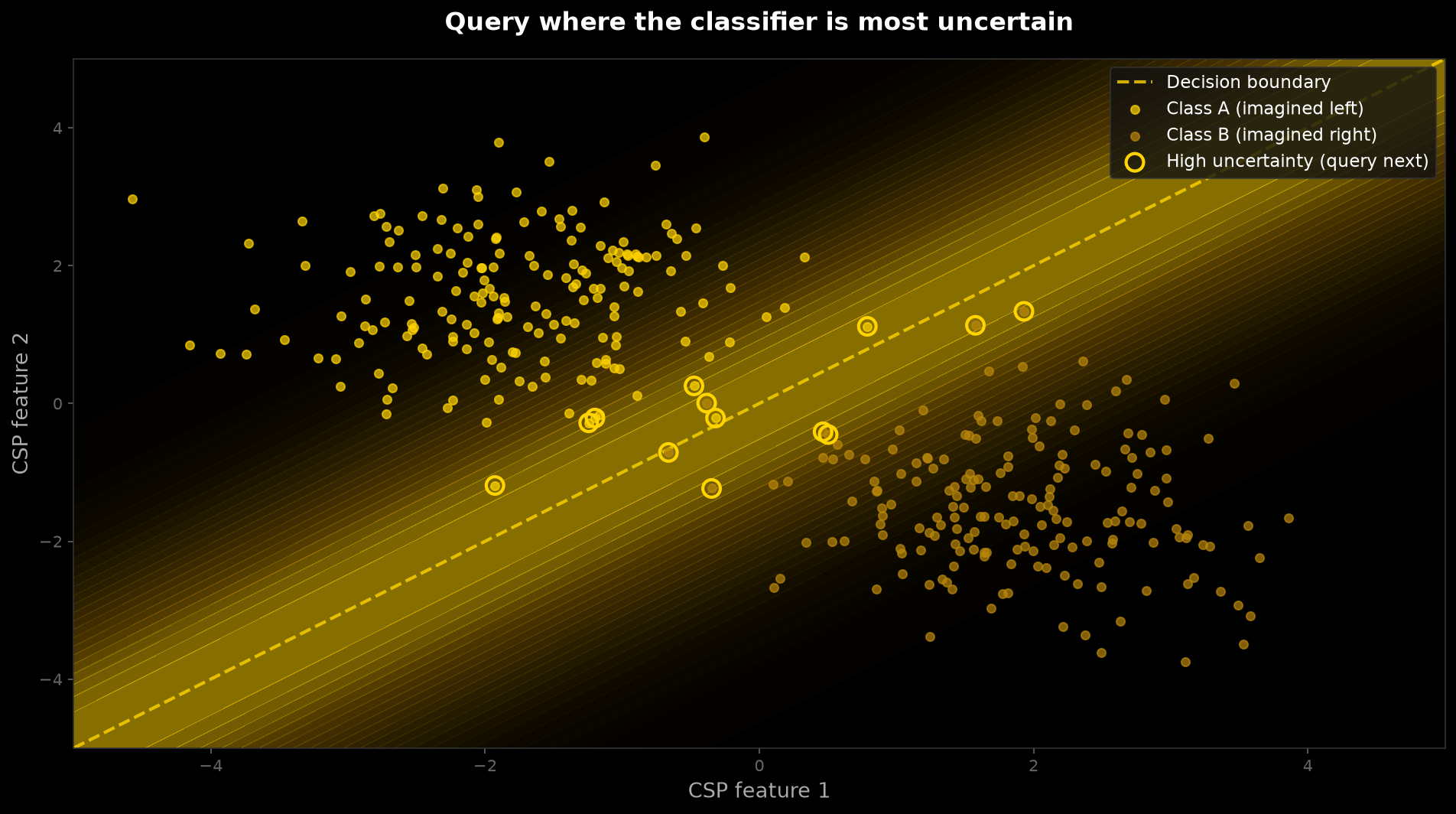

The scatter plot above illustrates the intuition. After an initial batch of trials, NimbusLDA has formed a rough estimate of each class's mean and covariance in CSP feature space. Points near the decision boundary — where the classifier assigns near-equal probability to both classes — are circled in gold. These are the trials an active selector would prioritize. Points deep in either cluster are already well-modeled; presenting more trials there provides diminishing information about where to draw the boundary.

In practice, a simple uncertainty criterion works well: after every k trials, compute the current posterior entropy for a held-out probe feature vector (derived from the centroid between class means). The class whose representative region has highest entropy becomes the next cue. More sophisticated implementations use batch query strategies or Bayesian experimental design — but even the greedy one-step-ahead approach produces significant reductions in calibration trial count.

Empirical Gains: Fewer Trials, Same Accuracy

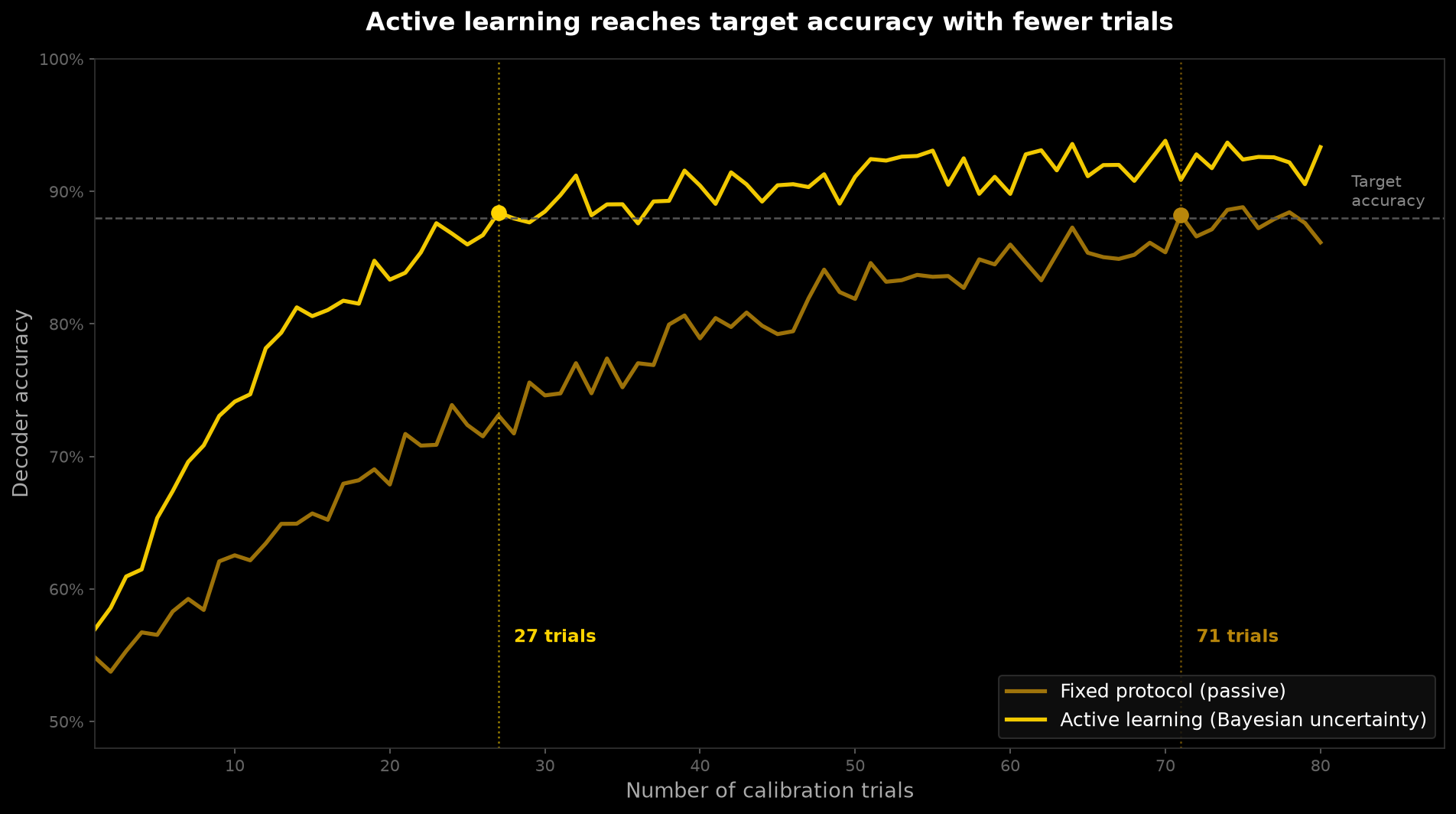

The chart above shows representative accuracy learning curves for a two-class motor-imagery decoder. The passive fixed-protocol curve requires around 70 trials before crossing 88% accuracy. The active learning curve — driven by NimbusLDA's posterior entropy — crosses the same threshold at roughly 27 trials. That is a 60% reduction in calibration time on this simulated dataset.

Real-world gains vary by user, paradigm, and signal quality, but the direction is consistent: uncertainty-driven selection concentrates labeled data where the model needs it most, compressing the calibration plateau.

A few practical considerations are worth flagging:

• Class balance: pure entropy-driven selection can occasionally over-represent one class if its feature distribution is intrinsically noisier. A soft balance constraint (no class exceeds 2× the trial count of any other) prevents degenerate schedules.
• Online refitting cost: partial_fit on NimbusLDA is fast — a few milliseconds per update — making within-trial refitting feasible. NimbusQDA is slightly heavier; batch refits every 5–10 trials are a reasonable trade-off.
• Warm start with population priors: combining active selection with hierarchical Bayesian priors from a pretrained population model gives the best of both worlds — a strong prior that narrows the initial search, plus active selection that personalizes it efficiently. This is also the same basic logic that makes Active Inference-style active sensing so data-efficient: choose observations that maximally reduce uncertainty.

Conclusion

BCI calibration is not a passive recording exercise — it is an inference problem. The model is learning a distribution over feature space, and every trial is a data point that updates that distribution. Active learning makes this explicit: by using the classifier's own posterior uncertainty to schedule which trials to collect next, calibration becomes an adaptive process that terminates as soon as the model knows enough.

The Nimbus Python SDK's calibrated posteriors and partial_fit API provide the building blocks. Nimbus Studio's Trial Protocol and Calibration Recorder nodes provide the scaffolding. Connecting them into an active calibration loop is a matter of letting uncertainty drive the cue sequence — and watching calibration sessions shrink from twenty minutes to five. If you’re ready to take the same decoder from offline training into a live session, From Training to Streaming: Deploying a Live EEG Decoder with the Nimbus Python SDK covers the full batch-to-stream path.
